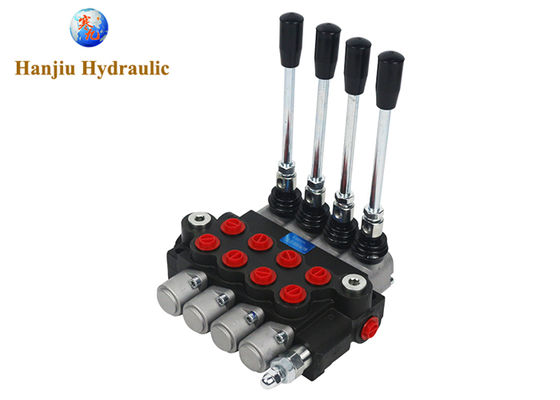

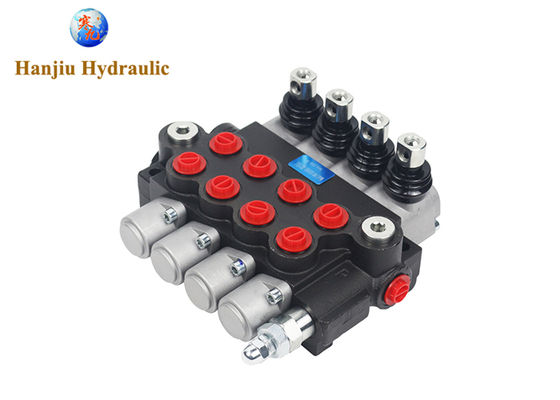

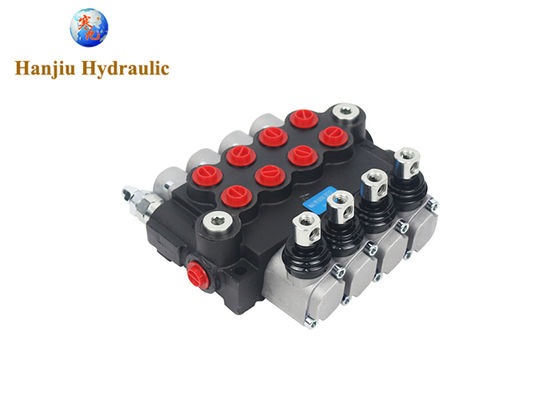

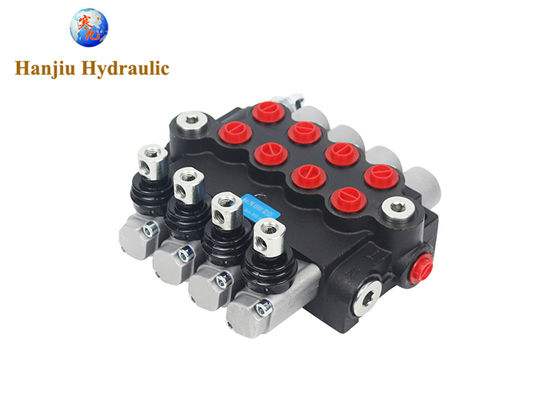

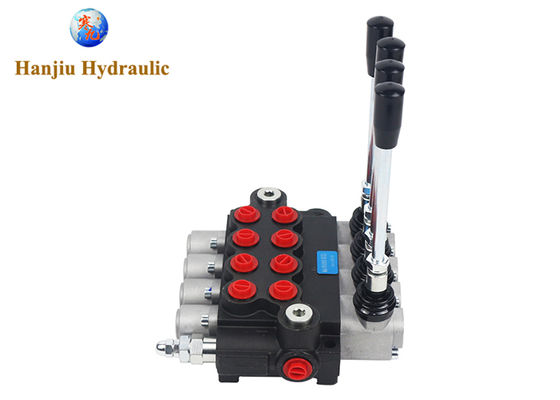

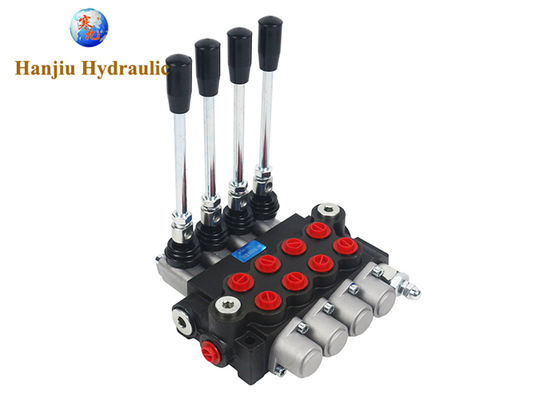

40 liter monoblock control valve, 4P40 , four spools , G 1/2" , open center spool, for Loader, Tractor

Welcome to China Hanjiu Hydraulic
The company manufacture MANY TYPE, MANY FLOW, hydraulic control valves for agriculture, engineering, special equipment

Serve OEM, hydraulic distributors
Welcome to contact us to learn how we can better assist your business

This product is P40 series hydraulic valve

Directional control valves are one of the core elements in a hydraulic system. They help direct the fluid to different components. The P40 series are monoblock directional control valves manufactured with up to seven levers.

Directional control valves have three functions:

Stop fluid flow

Allow fluid flow

Change fluid flow direction.

Inside the control valve is a component called a "spool," which can be operated mechanically or electrically. The movement of the spool enables or stops fluid flow; in other words, it controls the flow of the fluid.

Hanjiu offers integrated directional control valves with various capacities and spool control options.

* The spool is an open-center "A" type spool with spring return. The service port threads (A and B) are G 1/2".
* Maximum pressure P: 315 bar, T: 50 bar, A-B: 300 bar

1. Product parameters

2. Features & More function:

P40 series Hydraulic Directional Control Valves are economical monoblock type valves with various applications and features of

compact structure, low price, stable performance and high versatility.

Control type: manual, cable, pneumatic, electro-hydraulic, solenoid, joystick, etc.

Circuit type: parallel connection
Structure: Monoblock struction , 1-7 section

3. Application

Tractors, both ends, flatbed trucks, truck-mounted cranes, agricultural equipment
